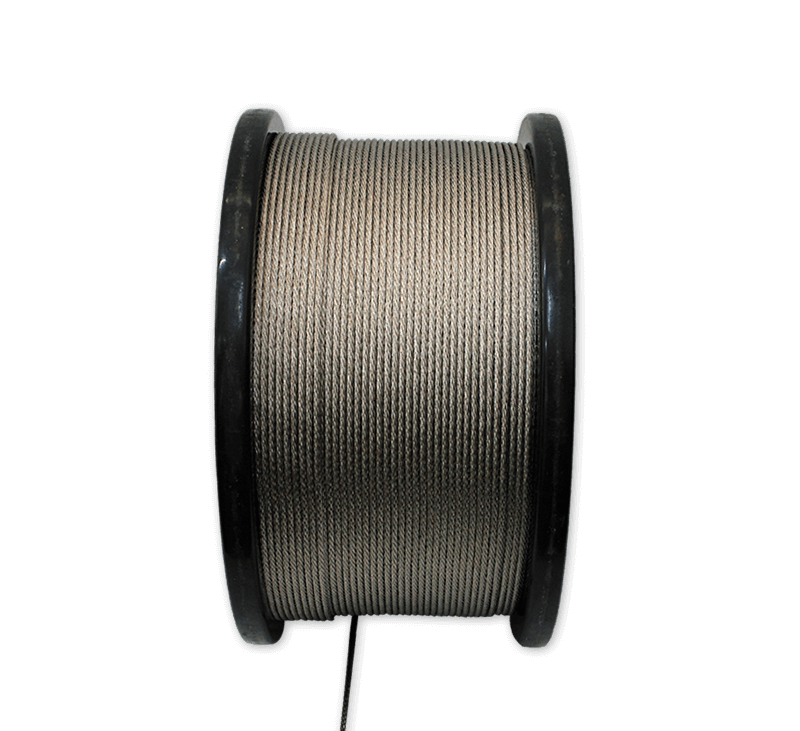

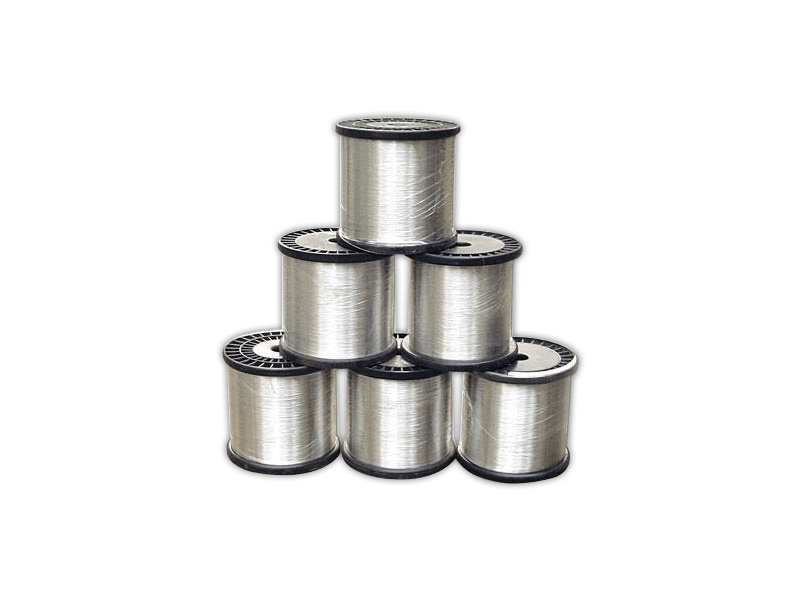

Nickel Plated Copper Wire
Nickel Plated Copper Wire Suppliers
Nickel Plated Copper Wire Manufacturers

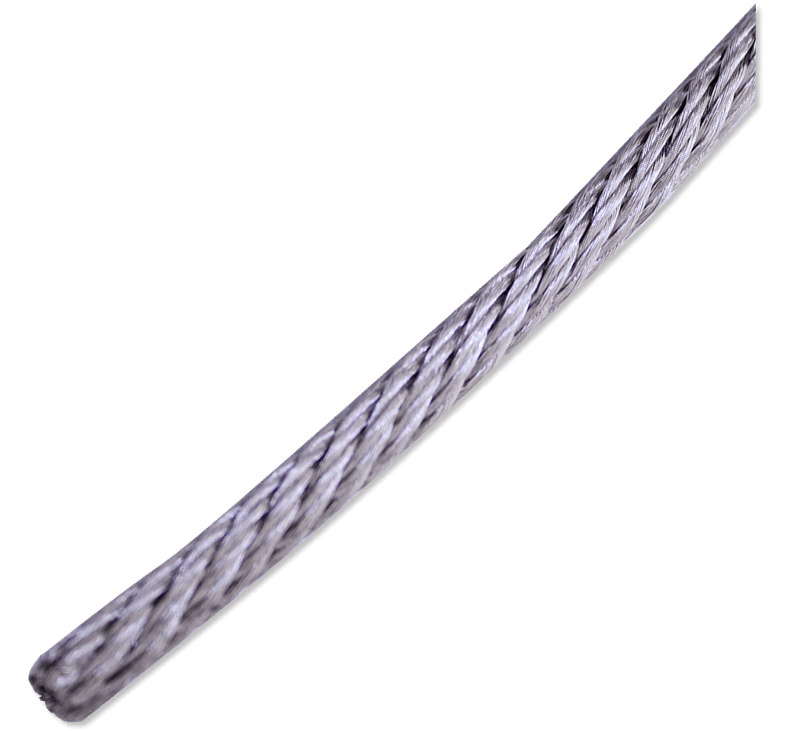

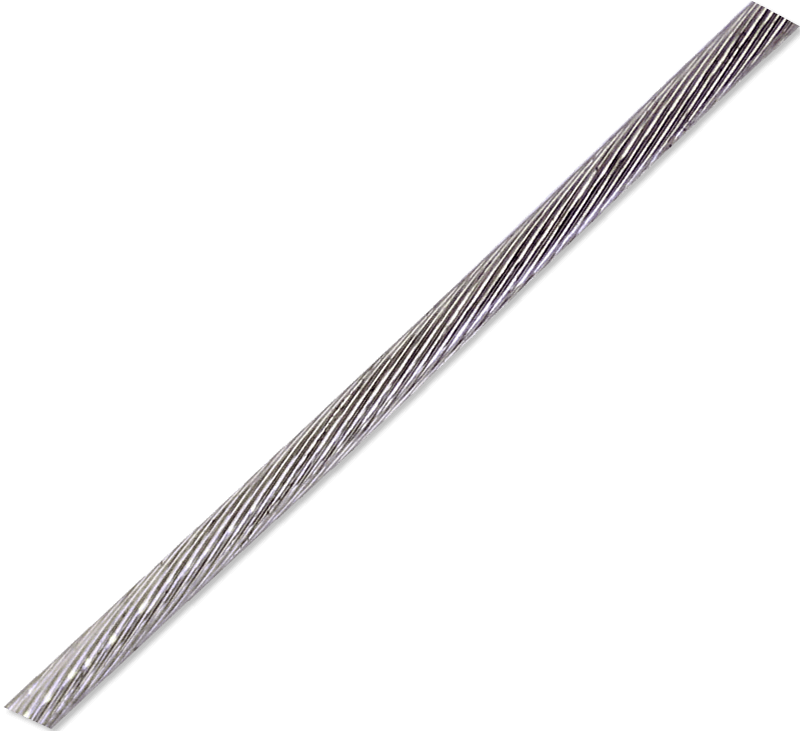

Stranded Nickel Plated Copper Wire
Best Quality Nickel Plated Copper Wire
Best Stranded Nickel Plated Copper Wire
Best Nickel Plated Copper Wire
Best Nickel Plated Copper Wire Manufacturers

At SPC Products, we supply high-quality Nickel Plated Copper Wire to meet exact needs of our customer. Our Nickel Plated Copper wire is suitable to a wide variety of industries. We have exhaustive experience in the manufacturing of Nickel Plated Copper wire.

The Nickel Plated Copper wire is meant for electrical wire and cable industry which demands electrical and thermal conductivity and corrosion resistance at high tempratures.

Features Of Nickel Plated Copper Wire

Our Nickel Plated Copper wire have inherent mechanical properties that make them a great choice for several industries.

The Best Nickel Plated Copper Wire Manufacturer

We offer customised solution that exactly suits to customer's requirements. Our quality control ensures that you always get the best grade of Nickel Plated Copper wire for your industrial needs with full traceability.

Sizes And Customisations Available

At our company, we strive to make sure your requirements of Nickel Plated Copper wire is fulfilled. As leader of Nickel Plated Copper wire manufacturers in India, we take care to ensure that we supply that will suit to customer's needs and best at all times.

ADVANTAGES OF NICKEL PLATING

  • Nickel plated copper wire with 50 micro-inch (1.27 micron) are used for manufacturing insulated wire with operating temperature up to 260ºC.
  • ASTM B 355 specifies 50 micro-inches (1.27 micron) Nickel thickness for continuity of coating.
  • The operating temperature can be raised from 260°C to 1100ºC with increase in Nickel plating thickness from 2% to 27% by weight for demanding high temprature applications.
  • For crimped connection of high temperature rated cable, Nickel Plated Copper wire is preferred choice over the Silver Plated Copper wire due to the cost effectiveness.
  • Atmospheric effect will be very less with Nickel Plated Copper wire to Silver Plated Copper Wire & Tin Plated Copper Wire. It offers better resistance to corrosive atmosphere.
  • Nickel Plated Copper Wire is used for high temperature operation which otherwise would tarnish Silver Plated Copper wire.
  • Nickel Plated Copper Wire is comparatively harder than Silver Plated Copper Wire & Tin Plated Copper Wire

PRODUCT DETAILS

  • Single Nickel Plated Copper Wire Conductor Size range (Diameter)
    • AWG 15 to AWG 40
    • SWG 17 to SWG 44
    • 1.45 mm to 0.079 mm
    • 0.057 inch to 0.0031 inch
  • Stranded Nickel Plated Copper Wire Conductor Size range (Diameter)
    • AWG 2/0 (19X70/30 AWG) to AWG 32 (7/40 AWG)
  • Nickel Plating Range
    • 1.27 micron (50 micro-inch) Nickel Plating as per ASTM B 355
    • Or as per Customer requirement
    • From 1.25 to 80 micron Nickel Plating
    • Or 2% to 27% Nickel Plating
  • Nickel Plated Copper Wire Specifications
    • ASTM B 355
  • Stranded Nickel Plated Copper Wire Specifications
    • ASTM B 286
  • Configurations of Stranded/Bunch/Rope Nickel Plated Copper Wire
    • True Concentric
    • Equilay Concentric
    • Unidirectional Concentric
    • Unilay
    • Bunched Stranding
    • Rope Lay Stranding

LIMITATION OF NICKEL PLATED COPPER WIRE

  • Soldering is difficult with Nickel Plated Copper Wire compare to Silver Plated Copper Wire and Tin Plated Copper Wire it requires an activated flux for soldering.
  • Nickel Plated Copper Wire will not be used where magnetic effect will be considered in insulated wire.
  • The conductivity of Nickel Plated Copper Wire is relatively low compare to silver plated copper wire thus it will offer slightly increase in resistance.

Standard Specification for Solid Nickel Plated Copper Wire

CONDUCTOR MINIMUM ELONGATION (%) MAXIMUM WEIGHT LENGTH
SIZE NOM DIA NOM DIA RESISTANCE AT 20°C NOMINAL NOMINAL NOMINAL NOMINAL
AWG MM INCH Ω/KM Ω/MFT KG/KM LBS/MFT M/KG FT/LB
15 1.4503 0.0571 25 11.098 3.383 14.687 9.8690 68.09 101.33
16 1.2903 0.0508 25 14.021 4.274 11.624 7.8110 86.03 128.02
17 1.1506 0.0453 25 17.633 5.374 9.244 6.2120 108.17 160.98
18 1.0236 0.0403 25 22.280 6.791 7.316 4.9160 136.69 203.42
19 0.9119 0.0359 25 28.072 8.556 5.805 3.9010 172.26 256.34
20 0.8128 0.0320 25 35.334 10.770 4.613 3.1000 216.76 322.58
21 0.7239 0.0285 25 44.546 13.578 3.659 2.4590 273.27 406.67
22 0.6426 0.0253 25 56.531 17.231 2.884 1.9380 346.73 516.00
23 0.5740 0.0226 25 70.850 21.595 2.301 1.5460 434.65 646.83
24 0.5105 0.0201 20 89.573 27.302 1.820 1.2230 549.44 817.66
25 0.4547 0.0179 20 112.906 34.414 1.443 0.9699 692.82 1031.03
26 0.4039 0.0159 20 143.093 43.615 1.139 0.7652 878.16 1306.85
27 0.3607 0.0142 20 179.421 54.688 0.908 0.6104 1100.87 1638.27
28 0.3200 0.0126 20 227.964 69.483 0.715 0.4806 1398.19 2080.73
29 0.2870 0.0113 20 283.402 86.381 0.575 0.3865 1738.60 2587.32
30 0.2540 0.0100 20 361.825 110.284 0.450 0.3027 2219.92 3303.60
31 0.2261 0.0089 20 466.343 142.141 0.357 0.2398 2802.21 4170.14
32 0.2032 0.0080 15 577.377 175.984 0.288 0.1937 3469.12 5162.62
33 0.1803 0.0071 15 733.357 223.527 0.227 0.1526 4403.47 6553.08
34 0.1600 0.0063 15 931.251 283.845 0.179 0.1201 5595.08 8326.39
35 0.1422 0.0056 15 1178.983 359.354 0.141 0.0949 7080.81 10537.41
36 0.1270 0.0050 15 1478.084 450.520 0.113 0.0757 8876.74 13210.04
37 0.1143 0.0045 15 1884.985 574.543 0.091 0.0613 10961.97 16313.21
38 0.1016 0.0040 15 2385.684 727.157 0.072 0.0484 13883.66 20661.16
39 0.0889 0.0035 15 3115.996 949.756 0.055 0.0371 18112.37 26954.18
40 0.0787 0.0031 15 3976.042 1211.898 0.043 0.0291 23091.72 34364.26

We provide customized solution for customers specific requirements.

Standard Specification for Stranded Nickel Plated Copper Wire

CONDUCTOR LAY LENGTH DIAMETER IN MM DIAMETER IN INCH MAXIMUM RESISTANCE AT 20°C WEIGHT
SIZE AWG STRAND NOMINAL MM NOMINAL INCH MINIMUM MAXIMUM MINIMUM MAXIMUM Ω/KM Ω/MFT NOMINAL KG/KM MAXIMUM KG/KM NOMINAL LBS/MFT MAXIMUM LBS/MFT
2/0 19X70/30 139.7000 5.5000 11.6586 12.3952 0.4590 0.4880 0.352 0.107 625.029 654.792 420.000 440.000
1/0 19X55/30 127.0000 5.0000 10.3378 10.9728 0.4070 0.4320 0.415 0.126 494.070 513.417 332.000 345.000
1 19X43/30 114.3000 4.5000 9.1440 9.7028 0.3600 0.3820 0.520 0.159 386.923 401.804 260.000 270.000
2 19X35/30 101.6000 4.0000 8.2550 8.7630 0.3250 0.3450 0.662 0.202 314.003 327.396 211.000 220.000
4 19X7/25 76.2000 3.0000 6.3500 6.8072 0.2500 0.2680 1.017 0.310 193.461 205.367 130.000 138.000
6 19X7/27 63.5000 2.5000 5.0292 5.3848 0.1980 0.2120 1.622 0.494 121.732 129.470 81.800 87.000
8 19X7/29 50.8000 2.0000 4.0132 4.2926 0.1580 0.1690 2.547 0.776 77.087 81.254 51.800 54.600
10 37/26 38.1000 1.5000 2.6924 2.8702 0.1060 0.1130 4.389 1.338 44.198 45.687 29.700 30.700
12 37/28 31.7500 1.2500 2.1260 2.2758 0.0837 0.0896 7.039 2.145 27.829 28.722 18.700 19.300
  19/25 25.4000 1.0000 2.2022 2.3419 0.0867 0.0922 6.456 1.968 28.573 30.359 19.200 20.400
14 19/27 22.2250 0.8750 1.7475 1.8593 0.0688 0.0732 10.252 3.125 19.495 19.048 13.100 12.800
16 19/29 19.0500 0.7500 1.3945 1.4732 0.0549 0.0580 16.100 4.907 11.370 11.980 7.640 8.050
18 19/30 15.7480 0.6200 1.2319 1.3081 0.0485 0.0515 20.630 6.288 8.899 9.435 5.980 6.340
20 19/32 12.7000 0.5000 0.9830 1.0541 0.0387 0.0415 33.089 10.086 5.700 6.131 3.830 4.120
22 7/30 8.3820 0.3300 0.7468 0.7899 0.0294 0.0311 54.326 16.559 3.244 3.453 2.180 2.320
  19/34 8.3820 0.3300 0.7722 0.8382 0.0304 0.0330 53.621 16.344 3.527 3.869 2.370 2.600
24 7/32 8.3820 0.3300 0.5969 0.6325 0.0235 0.0249 86.847 26.471 2.083 2.232 1.400 1.500
  19/36 8.3820 0.3300 0.6096 0.6731 0.0240 0.0265 86.041 26.225 2.232 2.500 1.500 1.680
26 7/34 6.3500 0.2500 0.4674 0.5029 0.0184 0.0198 141.638 43.171 1.289 1.414 0.866 0.950
  19/38 6.3500 0.2500 0.4851 0.5461 0.0191 0.0215 140.355 42.780 1.424 1.652 0.957 1.110
28 7/36 5.0800 0.2000 0.3708 0.4039 0.0146 0.0159 225.050 68.595 0.789 0.912 0.530 0.613
  19/40 5.0800 0.2000 0.3734 0.4318 0.0147 0.0170 236.887 72.203 0.856 1.028 0.575 0.691
30 7/38 4.7498 0.1870 0.2946 0.3277 0.0116 0.0129 368.288 112.25 0.519 0.600 0.349 0.403
32 7/40 3.1750 0.1250 0.2286 0.2489 0.0090 0.0098 611.646 186.43 0.313 0.344 0.210 0.231
