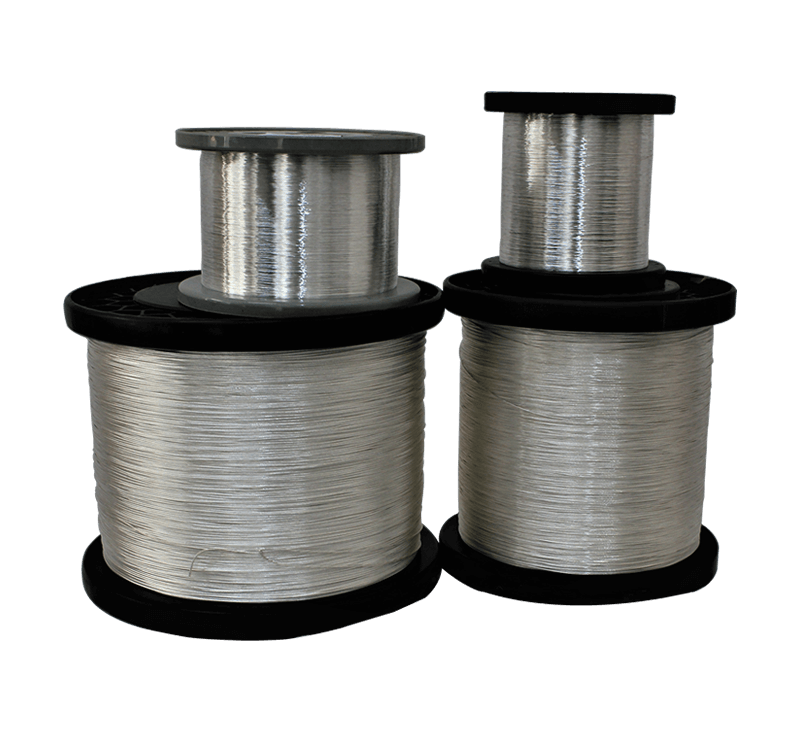

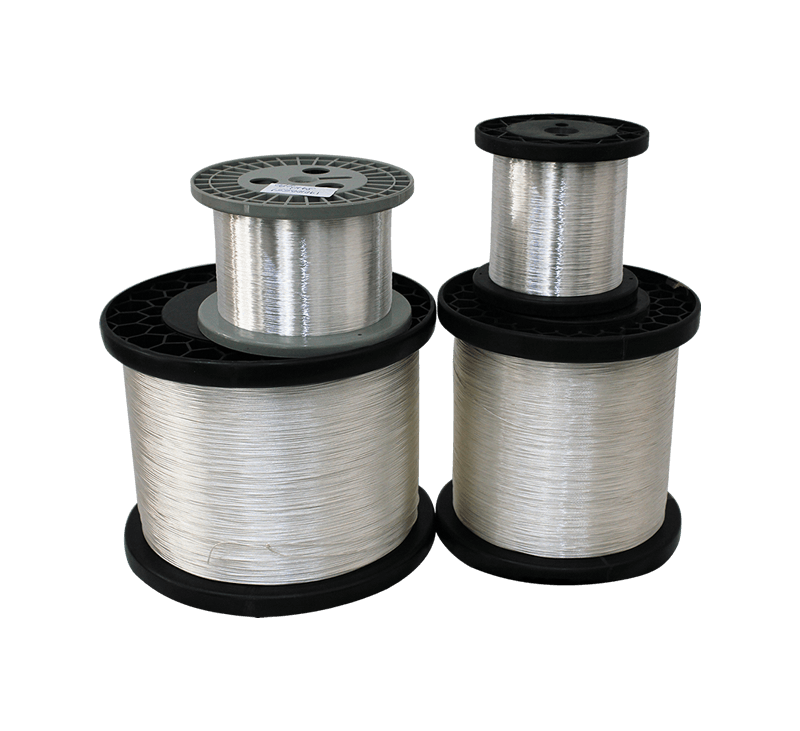

Best Quality Silver Plated Copper Covered Steel Wire
SPC Products is the leading name in the industry for Silver Plated Copper Covered Steel wires. The low carbon Steel core covered with Copper is plated with Silver. This wire is most suitable for high frequency applications and where good mechanical strength is required. We offer customized solution to suite your business’s needs in different sizes.
Features Of Silver Plated Copper Covered Steel Wire
At SPC Products, some of the features we assure our clients of are high tensile strength coupled with the conductive properties of copper. The Silver Plating adds to improve conductivity. It find applications in RF circuits. The wireless industry also uses them quite a bit.
Why Choose Us?
We are the manufacturers and suppliers of solid or stranded Silver Plated Copper Covered Steel (CCS) wires in India. Some of the reasons to choose us are:
- We are a certified ISO 9001 company.
- We offer highly competitive prices.
- Years of experience of manufacturing.
- Our products are always consistent in quality.
- They are delivered to our clients on time.
As the leading manufacturers of Silver Plated Copper Covered Steel wires, we assure you that we will be able to meet your exacting requirements.
ADVANTAGES OF SILVER PLATED COPPER COVERED STEEL WIRE
- Silver-Plated Copper Covered Steel wire used in high frequency cabling systems with operating temperatures up to 200°C. Silver would be used for hi-temperature processing where Tin would not be suitable due to a lower melting point.
- Excellent solderability characteristics.
- Silver has a better electrical conductivity than Nickel or Tin. It show an improved performance at higher transmission frequencies (skin effect) and would benefit electical performance.
- Typically specified at 40 micro-inches per ASTM B 298 for continuity of coating. Although higher Silver thicknesses and percentages by weight are available for specialized applications.
- Offers low contact resistance in high frequency circuit.
- Withstands higher temperatures and is not affected at sub-zero temperatures.
- Gives aesthetically pleasing bright finish.
It is precisely, for these reasons, that their Silver Plated Copper Covered Steel wires are specified in manufacturing of PTFE, FEP, TEFZEL, POLYIMIDE. Insulated wire menat for RF circuits.
PRODUCT DETAILS
-
Single Silver Plated Copper Covered Steel wire Conductor Size range (Diameter)
- AWG 18 to AWG 38
- SWG 19 to SWG 42
- 1.00 mm to 0.102 mm
- 0.0400 inch to 0.0040 inch
-
Stranded Silver Plated Copper Covered Steel wire Conductor Size range (Diameter)
- AWG 8 (19X20 AWG) to AWG 30 (7/38 AWG)
-
Silver Plating Range
- 1.0 micron (40 micro-inch) / 2.0 micron (80 micro-inch) Silver Plating as per ASTM B 298
- Or as per Customer requirement
- From 1.0 to 20 micron Silver Plating
- Or 1% to 20% Silver Plating
-
Solid Silver Plated Copper Covered Steel Wire Conductor Specifications
- ASTM B 298
-
Stranded Silver Plated Copper Covered Steel Wire Conductor Specifications
- ASTM B 286
-
Configurations of Strand/Bunch Conductor
- True Concentric
- Unilay
Compliant to ASTM-B-452, ASTM-B-355
LIMITATION OF SILVER PLATING
- Costly Compared to Nickel Plated Copper Covered Steel Wire/Tin Plated Copper Covered Steel Wire.
- Rated Temperature up to 200°C.
- With time Silver Plated Copper Covered Steel wire conductor in open environment will tarnish (environment effect).
- Require controlled parameter of insulation processing otherwise it will get tarnish.
